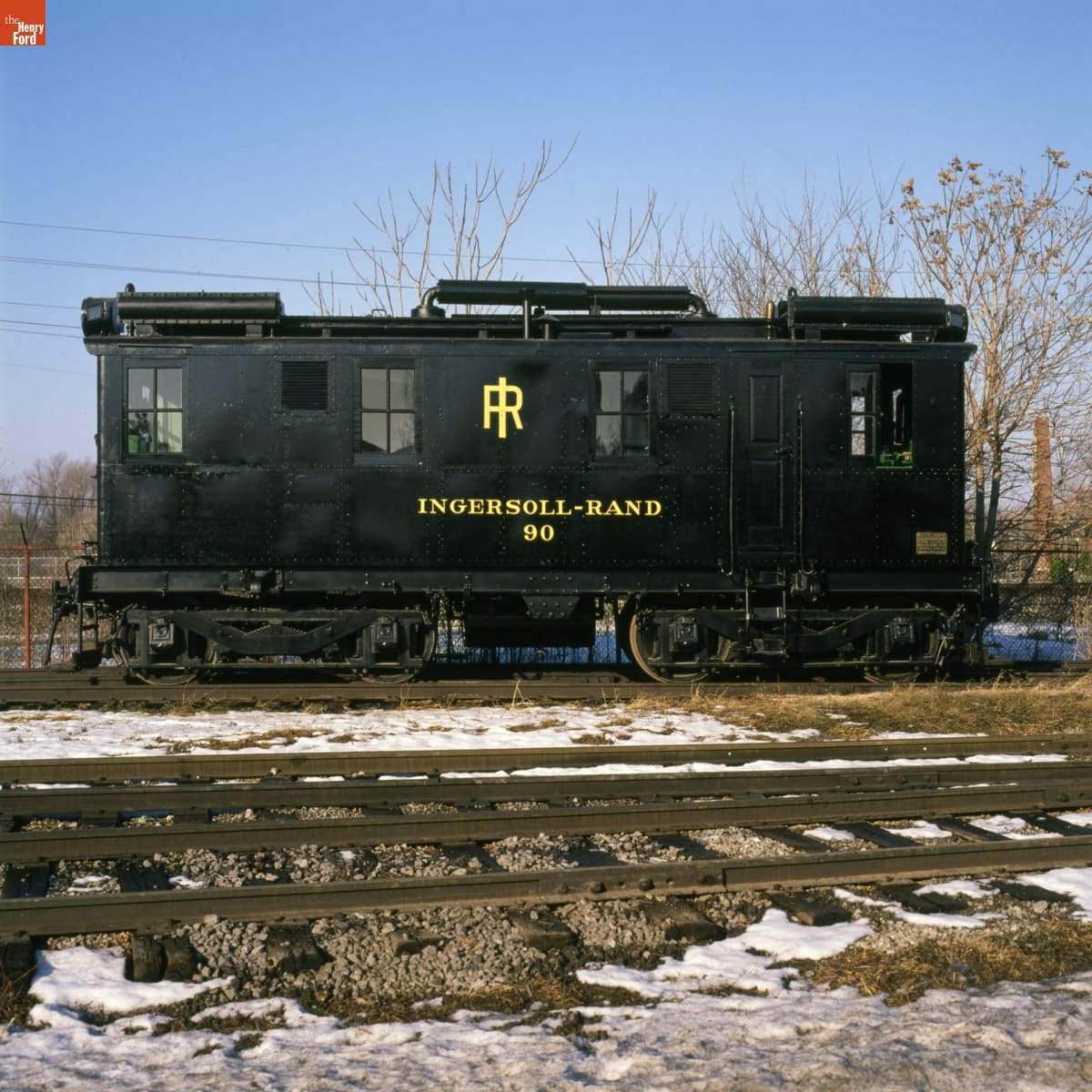

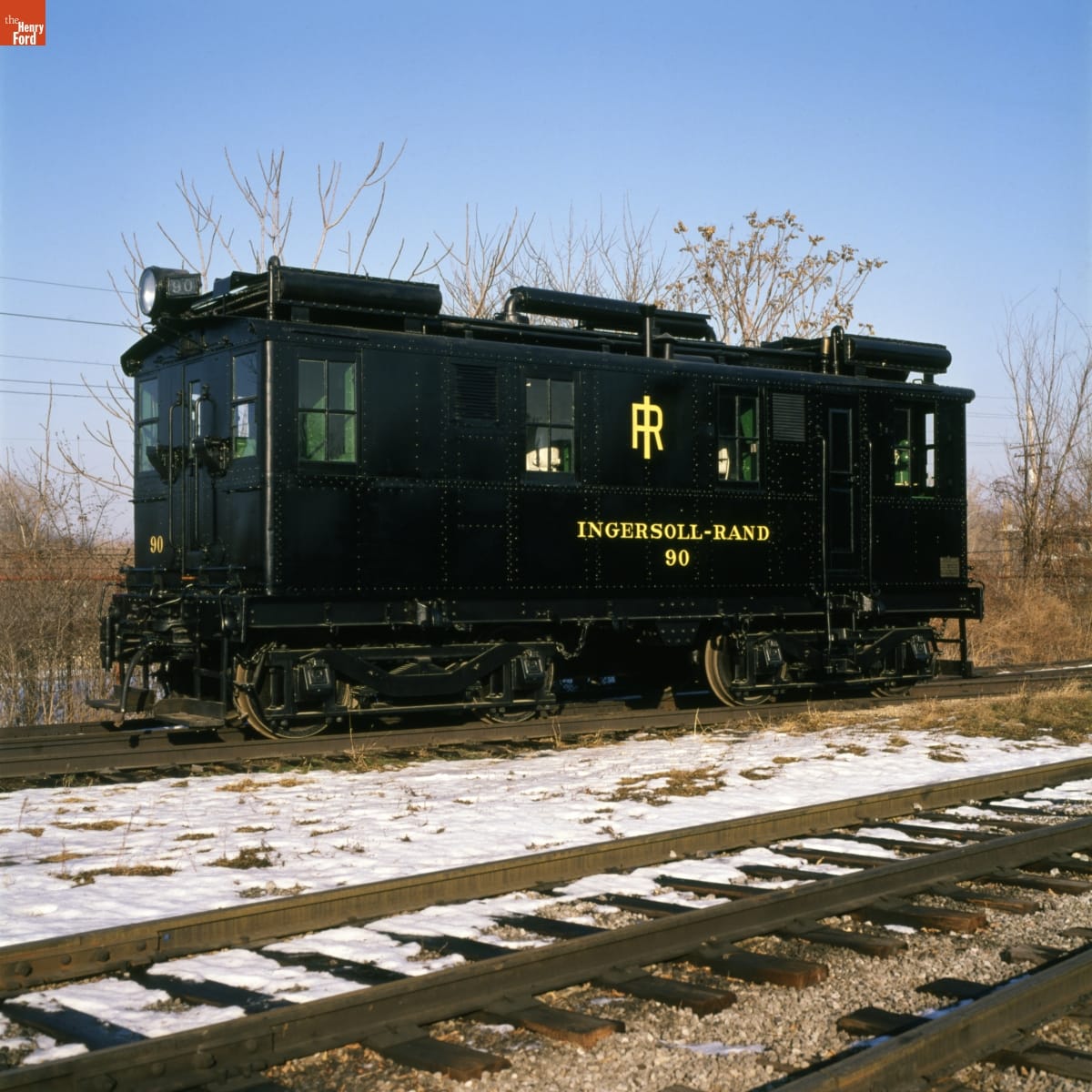

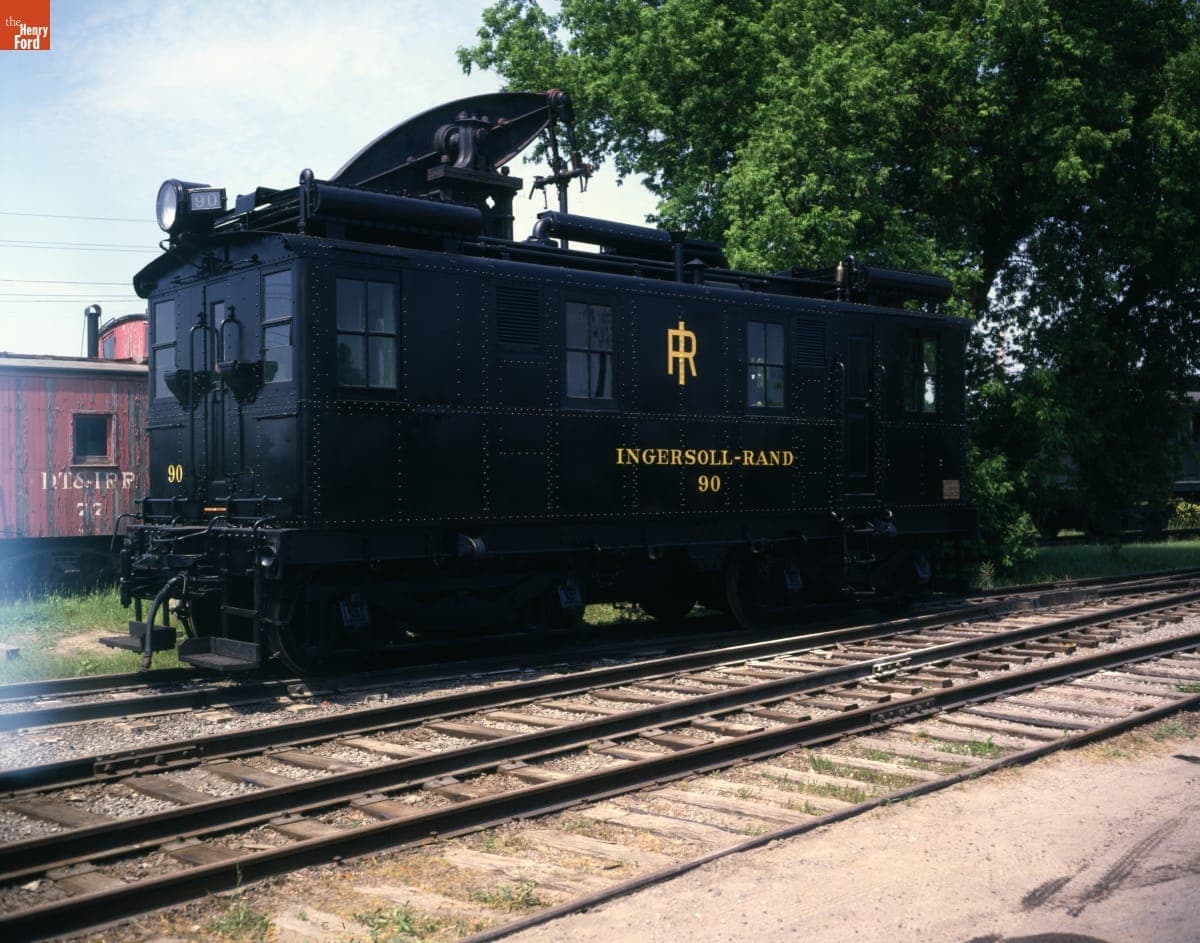

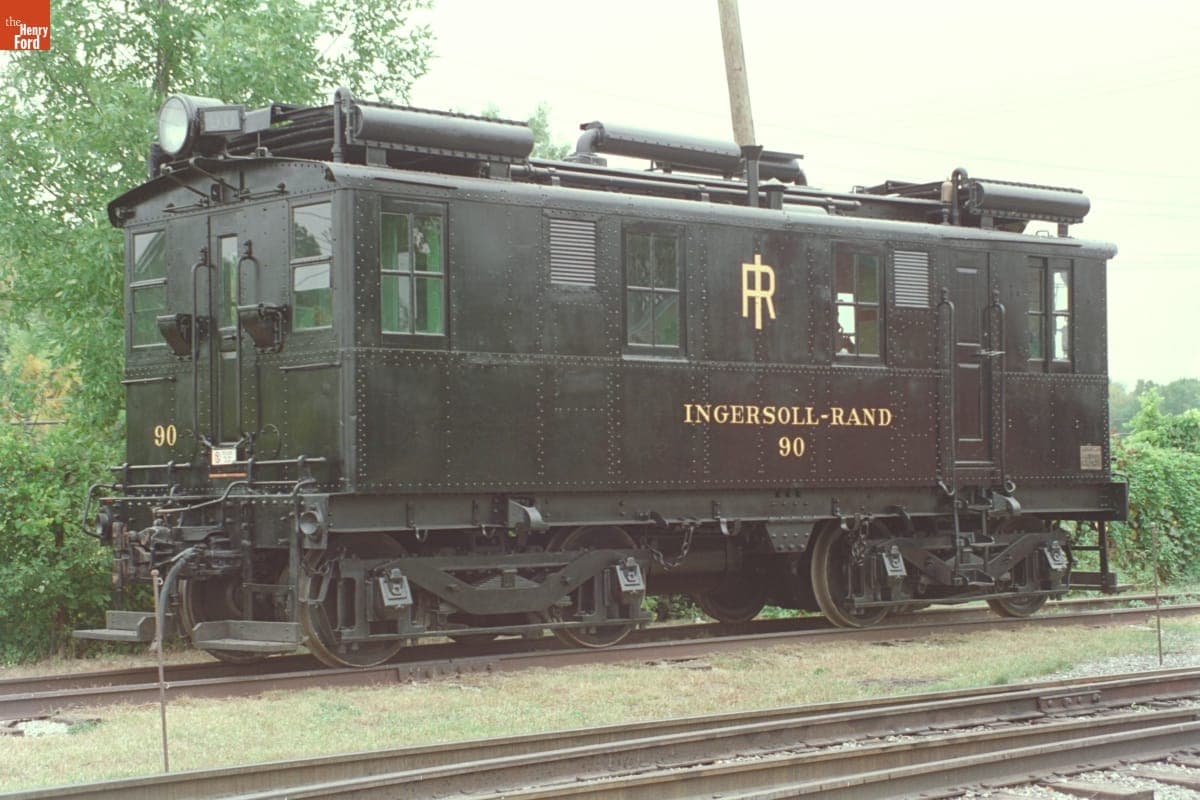

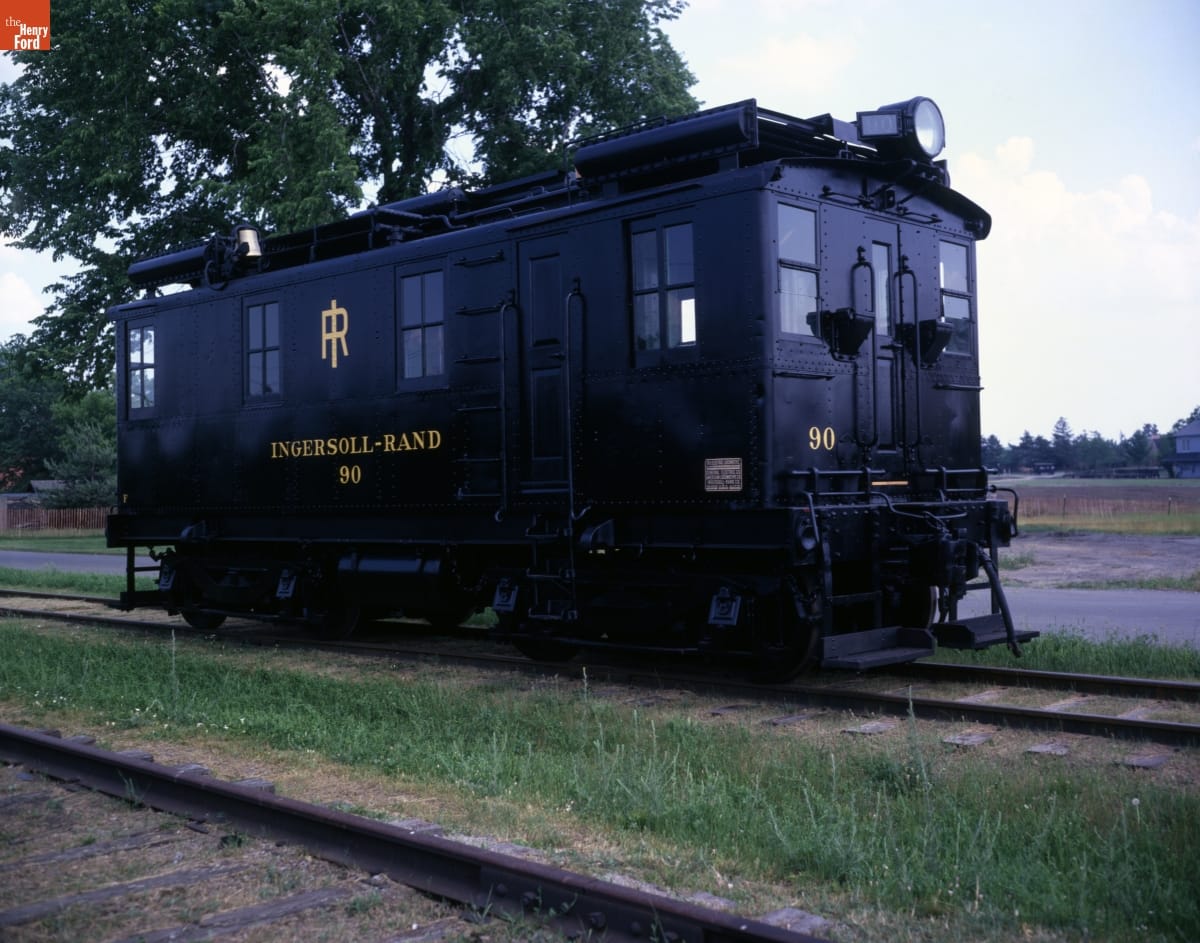

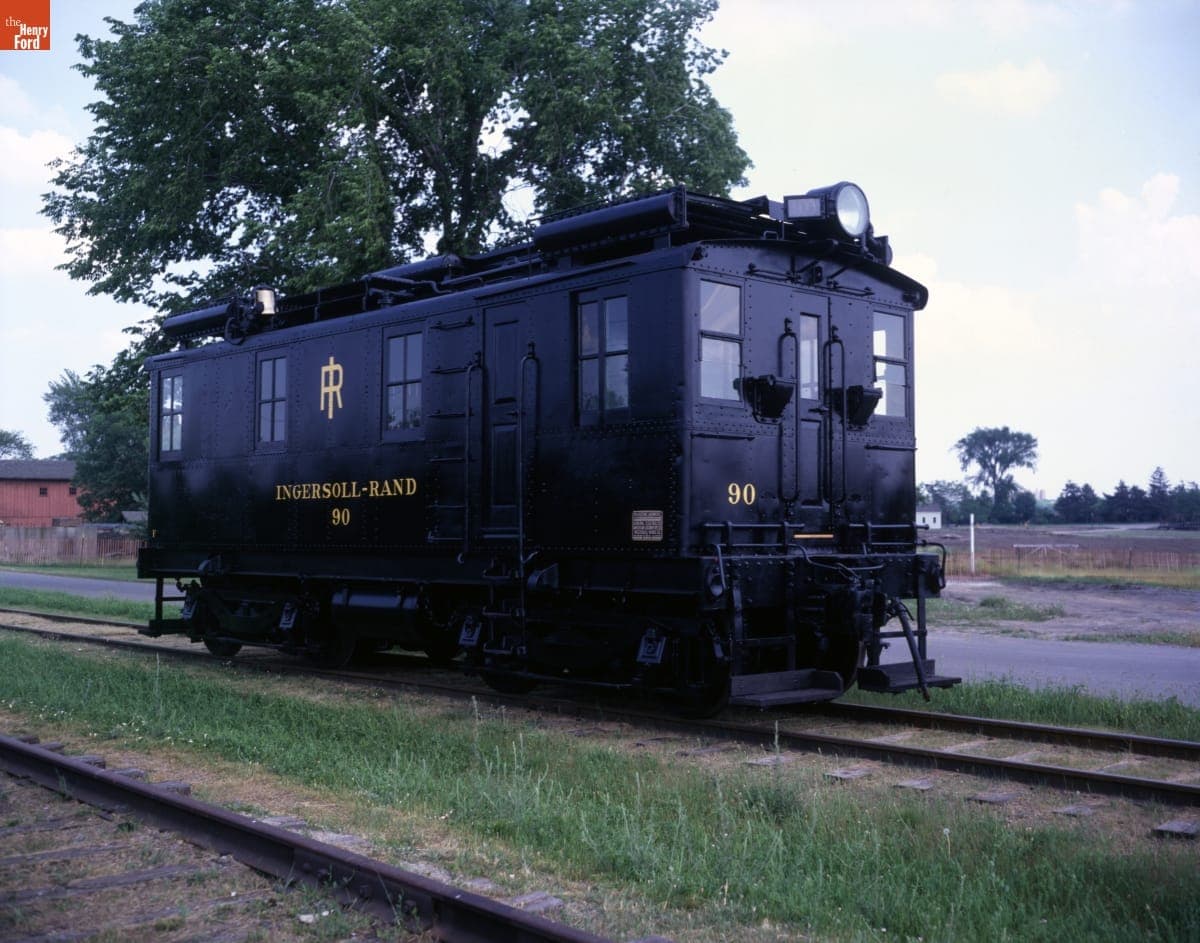

Ingersoll-Rand Number 90 Diesel-Electric Locomotive, 1926
THF67890 / Ingersoll-Rand Number 90 Diesel-Electric Locomotive, 1926
01
Artifact Overview
This is one of the earliest diesel-electric locomotives used on American railroads. Diesel-electrics offered many advantages over steam locomotives. They required less maintenance, were more fuel efficient, and could be operated by smaller crews. This locomotive's body houses an Ingersoll-Rand diesel engine that drives a General Electric generator, which in turn powers electric motors on the axles.
Artifact Details
Artifact
Diesel-electric locomotive
Date Made
1926
Place of Creation
Creator Notes
Made by General Electric Company, American Locomotive Company, and Ingersoll-Rand Company of Phillipsburg, New Jersey
Location
at Henry Ford Museum in Transportation - Trains
Object ID
70.96.1
Credit
From the Collections of The Henry Ford. Gift of Ingersoll-Rand Company.
Material
Metal
Steel (Alloy)
Color
Black (Color)
Yellow (Color)
Dimensions
Length: 399 in
Weight: 120000 lbs
Inscriptions
Outside markings: IR, #90/"Make Safety a Habit."
["Make Safety a Habit" was lettered on the locomotive as accessioned; it is not present on the restored locomotive]
Present lettering in white: INGERSOLL-RAND / 90 (JCL 4/29/97)
Builder's plates:
OIL-ELECTRIC LOCOMOTIVE / CLASS B-B 120/120 -0-4HM840G / GENERAL ELECTRIC CO. / AMERICAN LOCOMOTIVE CO. / INGERSOLL-RAND CO. / G.E.CO. NO. / 10132 / U.S.A. / DEC 1926 / A.L.CO. NO. / 66752
Metal tag: 1935 / 2872
Specifications
Maker: General Electric/Ingersoll-Rand/American Locomotive Company
Engine: 6-cylinder diesel
Horsepower: 300 at 550 revolutions per minute
Displacement: 5655 cubic inches
Generator: 200 kilowatts, 600 volts
Traction motors: 4 at 95 horsepower each
Weight: 60 tons
Tractive effort: 36,000 pounds
Speed: 30 miles per hour
