Designed (and Drawn) to Build

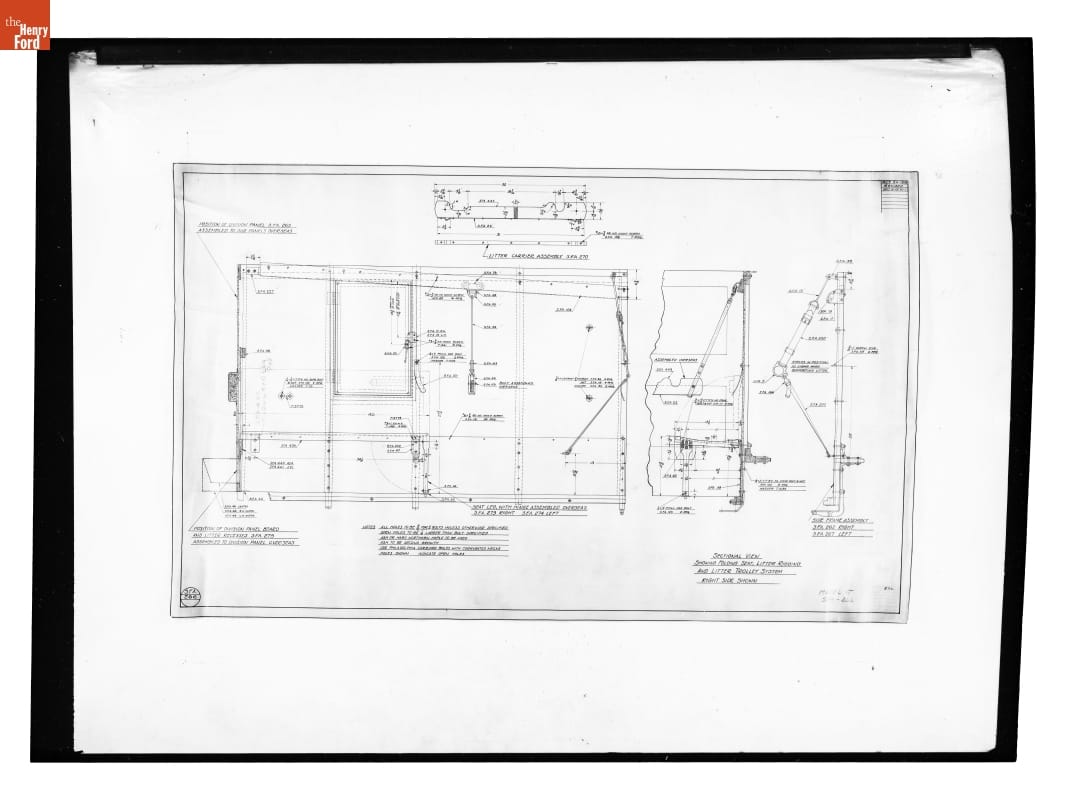

As you might expect, a car company with as long a life and as many different vehicles in production at various times as Ford Motor Company needed to document down to individual nuts and bolts each part of each vehicle. Over the 50 years between 1903 and 1957, Ford produced more than one million parts drawings, a comprehensive microfiche set of which now reside in The Henry Ford’s Benson Ford Research Center. We’ve just digitized several hundred of these parts drawings, including a couple dozen, like this one, that cover Model T ambulances built by Ford to be used during World War I.

Go online to learn more about our parts drawings holdings, or browse all the digitized Ford parts drawings in our Digital Collections.

Ellice Engdahl is Digital Collections & Content Manager at The Henry Ford.
